Air helper suspension kit designed for load support and towing applications while maintaining factory ride comfort when unloaded and fully loaded.
Fits between chassis and axle using vehicle-specific engineered brackets.
Engineered for South African conditions with a focus on durability, fitment accuracy and long-term reliability.
3-year full + 5-year structural / bracket warranty
Backed by over 10 years of proven use in South African towing and load-carrying applications.
All Prices include VAT, but Exclude fitment or courier costs

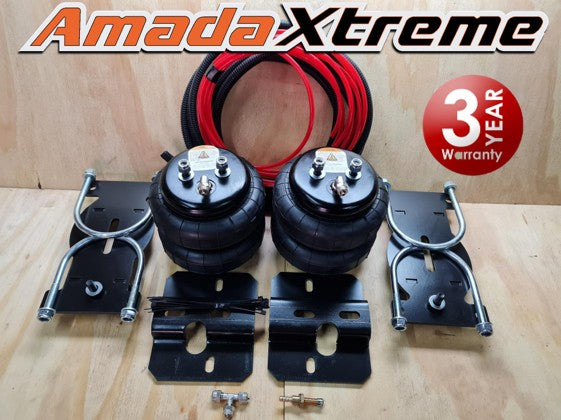

Kit Includes
- 2 x AmadaXtreme Air Bellows
- Top and bottom E-coated brackets
- All bolts & nuts
- 2 x spacers (for raised suspension only)
- Air piping, trunking, T-piece, inflation valve and fittings
Features
- No chassis cutting or drilling required
- DIY fitment with included instructions
- Single or Double manual inflation valve system
- Vehicle-specific bracket design for correct load distribution
Performance
- Maintains level ride height under load or towing
- Reduces rear sag and body roll
- Improves vehicle stability under load
- No effect on ride comfort when deflated
Air Helper Technical Specifications
- Operating Pressure: 0.3 – 7 Bar
- Typical Load Pressure: ±3.5 Bar at GVM
- Maximum Load Capacity: 950 kg per air spring at 7 bars
- Working Pressure: 0.3 – 7 Bar (recommended not to exceed 4bar)
- Burst Pressure: 20 Bar
-
Construction: 4-layer reinforced air spring
(Natural rubber + nylon reinforcement layers) - Fatigue Life: Tested to over 3 million cycles under controlled conditions
Bracket Specifications
- Manufactured in-house for cost control and quality consistency
- Laser cut and CNC bent for precision fitment
- E-coated finish for corrosion resistance (5-year protection)
Application
Suitable for:
- Towing
- Load carrying
- Overlanding setups
- Ideal for vehicles carrying canopies, trailers, camping gear or operating from zero to maximum GVM.
Compatible with standard and raised suspension (spacers included).
Frequently Asked Questions
Q: Will air helpers affect ride comfort when unloaded?
A: No, when deflated to minimum pressure (0.3 bar), ride comfort remains close to factory.
Q: Can I install this kit myself?
A: Yes, the kit is designed for DIY installation with no cutting or drilling required.
Q: What pressure should I run when loaded?
A: Typical load pressure is around 0.5 to 3.5 bar depending on vehicle load and GVM.
Q: Is this suitable for towing?
A: Yes, the system is designed to maintain ride height and stability during towing.
Q: Does this work with lifted suspension?
A: Yes, spacers are included for raised suspension setups.
Q: Will the Air-Helpers Damage my chassis?
A: No, the air-helpers are bolt to the bump-stop area which are reinforced are on the chassis, designed to take impact. Our kits are designed to assist when loaded to vehicle’s max GVM
Q: How do I inflate the System
A: Because the volume of the air helpers is small, they inflate very quick comparing to tyre. Any 12volt tyre compressor will inflate the air helpers, or at any filling station
